PlenaFlow® Plate Valve

PlenaFlow® Plate Valve

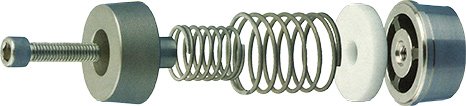

The PlenaFlow® plate valve is a double-sprung, stem guided plate style valve available with a Delrin®, Sustakon®, Stainless Steel, or titanium plate.

This valve features a one-piece retainer that can house either one or two springs and has a standard seat made of 316 Stainless Steel unless otherwise specified.


PlenaFlow® Plate Valve Technical Specifications

At Triangle Pump Components, we offer a premium plate pump valve for rigorous applications and environments. Capable of pumping ammonia, gasoline, petrochemicals, hydraulic fluid, sulfuric acid, and many other abrasive and corrosive materials, this double-sprung valve operates under pressures up to 15000 psi.

Our PlenaFlow® plate valves, available in a broad range of sizes, are made of:

  • 316 Stainless Steel
  • Monel®

In addition to this base material, customers may select a Delrin®, Stainless Steel, Sustakon® or a titanium disc for their valve.

Triangle Pump Components takes on high and low volume orders, prototyping, and specialty production. In addition to our manufacturing capabilities, we offer CAD design and CAM programming services to reverse engineer parts for our customers. We accept TurboCAD (TCW, TCX) and Unigraphics (PRT) file formats for these services.


PlenaFlow® Plate Valve Part Numbers

Gardner Denver

Gardner DenverValve SizeS/DStainless Steel Plate Valve Units W/ Delrin PlateStainless Steel Plate Valve Units W/ Titanium PlateMonel Plate Valve Units W/ Delrin PlateMonel Plate Valve Units W/ Titanium PlateSeries
PQ-2A, PS25A, PG-3, PW-3H,PW-3A TQC, GD45T, TQW225S/D5SV2S-035ST2S-035MV2M-035MT2M-035
PS-25C, G, H, PW-3D, E, F, BLOCK F.E.150S2SV1S-052ST1S-052MV1M-052MT1M-052
PS-25C, G, H, PW-3D, E, F, BLOCK F.E.225D5SV2S-035ST2S-035MV2M-035MT2M-035
TA-3B, C, BLOCK F.E.150S2SV1S-142ST1S-142MV1M-142MT1M-142
TA-3B, C, BLOCK F.E.225D5SV2S-275ST2S-275MV2M-275MT2M-275
TA-5H, J, TA-4B,C, F, G, BLOCK F.E., GD180M225S5SV2S-275SV2S-275MV2M-275MT2M-275
TA-5H, J, TA-4B,C, F, G, BLOCK F.E., GD180M225D55SV2S-255ST2S-255MV2M-0255MT2M-0255
TA5-B, G, TA4-A, E, TA3-A, TAE-BCB, GD100, GD180L300S89SV2S-1289ST2S-1289MV2M-1289MT2M-1289
TA5-B, G, TA4-A, E, TA3-A, TAE-BCB, GD100, GD180L350D81SV2S-0281ST2S-0281MV2M-0281MT2M-0281
TA-5A, F, TFE, GD-200-T, F, TAEF, TDEA, TFEA, TAEBAA, T200L, GD250T400S10SV2S-1810ST2S-1810MV2M-1810MT2M-1810
TA-5A, F, TFE, GD-200-T, F, TAEF, TDEA, TFEA, TAEBAA, T200L, GD250T400D11SV2S-0311ST2S-0311MV2M-0311MT2M-0311
PE5-Q, R, W, X, PT-4J, K, PX-5D, E, PE-5AA, BLOCK F.E., TEE-BFA225S5SV2S-035ST2S-035MV2M-035MT2M-035
PE5-Q, R, W, X, PT-4J, K, PX-5D, E, PE-5AA, BLOCK F.E., TEE-BFA225D55SV2S-0155ST2S-0155MV2M-0155MT2M-0155
PQ-2B, PS-25F, PQ-2D, PS-WK, TQWABB225S6SV2S-236ST2S-236MV2M-236MT2M-236
PQ-2B, PS-25F, PQ-2D, PS-WK, TQWABB225D66SV2S-0466ST2S-0466MV2M-0466MT2M-0466
PA-8N, PE-5E, J, U, PX-5A, PAHAA, PA-8A, R, S, U, PE-5C375S/D10SV2S-0210ST2S-0210MV2M-0210MT2M-0210
PT4-A, L, PX5-B, PE5D, F, G, H, K, L, T, V, Y, Z, TEE-BGB300S/D89SV2S-0289ST2S-0289MV2M-0289MT2M-0289
TEE-BAA, TEE-BFB, TEE-BJB (TEE w/maximum flow uses AR10A-68)350S/D98SV2S-6898ST2S-6898MV2M-6898MT2M-6898
TDD-A350S98SV2S-1698ST2S-1698MV2M-1698MT2M-1698
TDD-A350D90SV2S-0190ST2S-0190MV2M-0190MT2M-0190
PA-8W, PA-8X, PAHAB, PAHAC300S89SV2S-0289ST2S-0289MV2M-0289MT2M-0289
PA-8W, PA-8X, PAHAB, PAHAC325D81SV2S-0181ST2S-0181MV2M-0181MT2M-0181
LF5, FFFXF, Duplex350S/D98SV1S-0398ST1S-0398MV1M-0398MT1M-0398
FCFXX, FCFXD, FCFJ, FCFC, Duplex375S/D9SV1S-309ST1S-309MV1M-309MT1M-309
FGFXG, FDFXX, FDFXD, FDFS, FDFJ, Duplex400S/D10SV1S-0510ST1S-0510MV1M-0510MT1M-0510
FXFXZ, FYFXX, FYFXD, FYFS, Duplex550S/D21SV1S-01Not Available21MV1M-01Not Available21
QAFB & QAFBBA275S/D38SV2S-0438ST2S-0438MV2M-0438MT2M-0438
QAFC & QAFBCA225S/D36SV2S-1036ST2S-1036MV2M-1036MT2M-1036
QAFC & QAFBCA400S/D43SV2S-0143ST2S-0143MV2M-0143MT2M-0143
GD-135, QBX, QBXA, TDDB, GD135QLP225S7SV2S-417ST2S-417MV2M-417MT2M-417
GD-135, QBX, QBXA, TDDB, GD135QLP225D7SV2S-427ST2S-427MV2M-427MT2M-427

Gaso

GasoValve SizeS/DStainless Steel Plate Valve Units W/ Delrin PlateStainless Steel Plate Valve Units W/ Titanium PlateMonel Plate Valve Units W/ Delrin PlateMonel Plate Valve Units W/ Titanium PlateSeries
T-10-4150S/D2SV1S-342ST1S-342MV1M-342MT1M-342
3211, 3364, 3364-F, 2321 55T-3M175S3SV2S-02A3ST2S-02A3MV2M-02A3MT2M-02A3
3211, 3364, 3364-F, 2321 55T-3M200D5SV2S-025ST2S-025MV2M-025MT2M-025
3364 (Same size suction & discharge) 55T-3L200S/D5SV2S-025ST2S-025MV2M-025MT2M-025
3365275S/D4SV2S-04A4ST2S-04A4MV2M-04A4MT2M-04A4
5350-M, 5698-M, 2913-M, 3113-M, 3088-M/MS, 2888-M225S5SV2S-285ST2S-285MV2M-285MT2M-285
5350-M, 5698-M, 2913-M, 3113-M, 3088-M/MS, 2888-M225D50SV2S-0450ST2S-0450MV2M-0450MT2M-0450
3113-H200S5SV2S-395ST2S-395MV2M-395MT2M-395
3113-H225D5SV2S-285ST2S-285MV2M-285MT2M-285
5350-L, 3113-L, 3088-L, 2913-L, 2888-L, 5698-L300S89SV2S-1789ST2S-1789MV2M-1789MT2M-1789
5350-L, 3113-L, 3088-L, 2913-L, 2888-L, 5698-L300D80SV2S-0380ST2S-0380MV2M-0380MT2M-0380
3467, 3580275S/D7SV2S-217ST2S-217MV2M-217MT2M-217
3580 (Old Style) Ser. #32492 & Down225S/D6SV2S-156ST2S-156MV2M-156MT2M-156
3466, 3581, 3868, 3968350S/D98SV2S-5498ST2S-5498MV2M-5498MT2M-5498
3582, 3969, 3670, 3869 (Serial #33036 & Down)400S/D10SV2S-06B10ST2S-06B10MV2M-06B10MT2M-06B10
3583, 3774, 5884, Q-350-2, Q350-5H T200-2225S/D36SV2S-0936ST2S-0936MV2M-0936MT2M-0936
3671, 3673, 5885WS, 3776WS, 3673WS400S/D10SV2S-0110ST2S-0110MV2M-0110MT2M-0110
3672, 3670 (Serial #33037 & Up)300S/D89SV2S-1789ST2S-1789MV2M-1789MT2M-1789
3775, 5885, T-450-3,Q-350-3, 350Q-5M, T200-3, T250-M350S98SV2S-5498ST2S-5498MV2M-5498MT2M-5498
3775, 5885, T-450-3,Q-350-3, 350Q-5M, T200-3, T250-M350D90SV2S-0190ST2S-0190MV2M-0190MT2M-0190
3776, 5886, Q350-4, 350Q-5L, T200-4, T250-L400S10SV2S-0110ST2S-0110MV2M-0110MT2M-0110
3776, 5886, Q350-4, 350Q-5L, T200-4, T250-L400D11SV2S-0111ST2S-0111MV2M-0111MT2M-0111
601, 602 Simplex250S/D6SV1S-076ST1S-076MV1M-076MT1M-076
1507, 2017 Duplex400S/D12SV1S-1812ST1S-1812MV1M-1812MT1M-1812
1509, 2019 Duplex350S9SV1S-129ST1S-129MV1M-129MT1M-129
1509, 2019 Duplex400D10SV1S-0610ST1S-0610MV1M-0610MT1M-0610
1654, 1742, 1755 Duplex400S/D10SV1S-0110ST1S-0110MV1M-0110MT1M-0110
1740 Duplex350S98SV1S-1698ST1S-1698MV1M-1698MT1M-1698
1740 Duplex350D98SV1S-1398ST1S-1398MV1M-1398MT1M-1398
1741 Duplex400S10SV1S-0110ST1S-0110MV1M-0110MT1M-0110
1741 Duplex400D12SV1S-1012ST1S-1012MV1M-1012MT1M-1012
1743, 1753, 2651 Duplex400S/D20SV1S-02Not Available20MV1M-02Not Available20
1844, 2244 Duplex300S89SV1S-2189ST1S-2189MV1M-2189MT1M-2189
1844, 2244 Duplex350D98SV1S-5498ST1S-5498MV1M-5498MT1M-5498
1845, 2245 Duplex350S/D98SV1S-3398ST1S-3398MV1M-3398MT1M-3398
1847, 1849, 1860, 2249, 1550, 2050, 1560, 1563 Duplex400S/D10SV1S-0610ST1S-0610MV1M-0610MT1M-0610
1848 Duplex350S/D98SV1S-5498ST1S-5498MV1M-5498MT1M-5498
1508, 2018 Duplex300S/D89SV1S-2089ST1S-2089MV1M-2089MT1M-2089
1931 Duplex350S/D98SV1S-6198ST1S-6198MV1M-6198MT1M-6198
2652 Duplex600S/D21SV1S-2Not Available21MV1M-2Not Available21

National

NationalValve SizeS/DStainless Steel Plate Valve Units W/ Delrin PlateStainless Steel Plate Valve Units W/ Titanium PlateMonel Plate Valve Units W/ Delrin PlateMonel Plate Valve Units W/ Titanium PlateSeries
J-50-M, J-60-M, J-125-H, J-150-H200S5SV2S-12A5ST2S-12A5MV2M-12A5MT2M-12A5
60T-3M200D50SV2S-0250ST2S-0250MV2M-0250MT2M-0250
J-50-L, J-60-L, 60T-3L, 80T-3L250S6SV1S-09B6ST1S-09B6MV1M-09B6MT1M-09B6
J-50-L, J-60-L, 60T-3L, 80T-3L250D66SV1S-02B66ST1S-02B66MV1M-02B66MT1M-02B66
J-85-M, J-100-M, 100T-4M 130T-4M250S6SV2S-096ST2S-096MV2M-096MT2M-096
J-85-M, J-100-M, 100T-4M 130T-4M250D66SV2S-0266ST2S-0266MV2M-0266MT2M-0266
J-85-L, J-100-L, 100T-4L 130T-4L350S98SV2S-0198ST2S-0198MV2M-0198MT2M-0198
J-85-L, J-100-L, 100T-4L 130T-4L350D90SV2S-0290ST2S-0290MV2M-0290MT2M-0290
J-125-M, J-150-M, J-165-M, 165T-5M J-200-M, 200T-5M, 300Q-5M, J-250-M, J-275-M, 250T-5M300S89SV2S-0789ST2S-0789MV2M-0789MT2M-0789
J-125-M, J-150-M, J-165-M, 165T-5M J-200-M, 200T-5M, 300Q-5M, J-250-M, J-275-M, 250T-5M300D80SV2S-0180ST2S-0180MV2M-0180MT2M-0180
J-125-L, J-150-L, J-165-L, 165T-5L, J-250-L, J-275-L, 250T-5L, 300Q-5L, 200T-5L, J-200-L400S10SV2S-1910ST2S-1910MV2M-1910MT2M-1910
J-125-L, J-150-L, J-165-L, 165T-5L, J-250-L, J-275-L, 250T-5L, 300Q-5L, 200T-5L, J-200-L400D11SV2S-0411ST2S-0411MV2M-0411MT2M-0411
J-375-M, J-625-M, 430T-7M(3-1/2), 625Q-7M, JWS-340L350S10SV2S-1910ST2S-1910MV2M-1910MT2M-1910
J-375-M, J-625-M, 430T-7M(3-1/2), 625Q-7M, JWS-340L350D11SV2S-0411ST2S-0411MV2M-0411MT2M-0411
J-375-L, J-625-L, 625Q-7L, J-625-7L, 430T-7L550S19SV2S-02Not Available19MV2M-02Not Available19
J-375-L, J-625-L, 625Q-7L, J-625-7L, 430T-7L550D19SV2S-03Not Available19MV2M-03Not Available19
F-15-M150S/D2SV1S-022ST1S-022MV1M-022MT1M-022
F-15-L, F-30-S175S/D3SV2S-083ST2S-083MV2M-083MT2M-083
F-30-L, F-60-S (Serial #500 & Up)250S/D6SV2S-106ST2S-106MV2M-106MT2M-106
F-60-S, (Serial #499 & Down)250S/D6SV2S-116ST2S-116MV2M-116MT2M-116
F-90-S (Serial #299 & Down)300S/D89SV2S-0389ST2S-0389MV2M-0389MT2M-0389
F-90-S (Serial #300 & Up)300S/D89SV2S-0489ST2S-0489MV2M-0489MT2M-0489
F-90-L400S/D10SV2S-2010ST2S-2010MV2M-2010MT2M-2010
D-50 Duplex400S/D10SV1S-0110ST1S-0110MV1M-0110MT1M-0110
C-150 Duplex550S/D21SV1S-05Not Available21MV1M-05Not Available21

Union

UnionValve SizeS/DStainless Steel Plate Valve Units W/ Delrin PlateStainless Steel Plate Valve Units W/ Titanium PlateMonel Plate Valve Units W/ Delrin PlateMonel Plate Valve Units W/ Titanium PlateSeries
SX-3, DX-5, TX-10 1 1/2″ Cyl. (Plunger Size 1 1/8″ To 1 5/8″)150S/D2SV1S-122ST1S-122MV1M-122MT1M-122
TD-50, TD-60, QD-100 1 1/8″ Cyl.175S/D3SV2S-123ST2S-123MV2M-123MT2M-123
TD-50,TD-60, QD-100 1 3/4″ Cyl.200S/D5SV2S-295ST2S-295MV2M-295MT2M-295
TD-50, TD-60, QD-100 2 1/2″ Cyl.250S/D6SV2S-21B6ST2S-21B6MV2M-21B6MT2M-21B6
TD-120, QD-200 “B” CYL.250S/D36SV2S-1836ST2S-1836MV2M-1836MT2M-1836
TD-120, QD-200 “C” CYL.400S/D15SV2S-0115ST2S-0115MV2M-0115MT2M-0115
TD240,QD-400,QD-700 *5.50″ Flg f/ QD400 C Cylinder400S/D10SV2S-5010ST2S-5010MV2M-5010MT2M-5010
TX-75250S/D98SV2S-4098ST2S-4098MV2M-4098MT2M-4098
TX-150350S/D98SV2S-3498ST2S-3498MV2M-3498MT2M-3498
TX-125, QX-300400S/D12SV2S-1512ST2S-1512MV2M-1512MT2M-1512
TX-150L525S/D25SV2S-01Not Available25MV2M-01Not Available25
5.5×3.5×5 (Threaded Seat) Duplex275S/D4SV1S-08A4ST1S-08A4MV1M-08A4MT1M-08A4
6.5×12 (Threaded Seat) Duplex275S/D4SV1S-09A4ST1S-09A4MV1M-09A4MT1M-09A4
6x4x6 (Threaded Seat) Duplex350S/D98SV1S-0498ST1S-0498MV1M-0498MT1M-0498
7×3.5×10 (Threaded Seat) Duplex300S/D8SV1S-148ST1S-148MV1M-1489MT1M-148
10×7.5×12 (Threaded Seat) Duplex400S/D10SV1S-3810ST1S-3810MV1M-3810MT1M-3810

Wheatley

WheatleyValve SizeS/DStainless Steel Plate Valve Units W/ Delrin PlateStainless Steel Plate Valve Units W/ Titanium PlateMonel Plate Valve Units W/ Delrin PlateMonel Plate Valve Units W/ Titanium PlateSeries
P-50, P-100, P-175, P-200175S3SV2S-043ST2S-043MV2M-043MT2M-043
P-50, P-100, P-175, P-200175D3SV2S-033ST2S-033MV2M-033MT2M-033
P-50A, P-100A, P-200A, 5P-200A, P-200B, T-230, T-225M/AL/AM/LS, 2S-1M/L, 5S-2M/L, 11D-2M/L, 22T-2M/L, 32T-2M/L, 31Q-2M/L175S/D3SV2S-043ST2S-043MV2M-043MT2M-04 P.O.R.3
P-313, 5P-313, P-200-H, HP-200-H175S2SV1S-182ST1S-182MV1M-182MT1M-182
P-313, 5P-313, P-200-H, HP-200-H225D5SV2S-345ST2S-345MV2M-345MT2M-345
P-300, 5P-300250S4SV2S-024ST2S-024MV2M-024MT2M-024
P-300, 5P-300175D3SV2S-043ST2S-043MV2M-043MT2M-043
P-300A, 5P-300A225S5SV2S-135ST2S-135MV2M-135MT2M-135
P-300A, 5P-300A175D3SV2S-043ST2S-043MV2M-043MT2M-043
P-323, 5P-323, HP-125M, 59T-3M, 103Q-3M, 110Q-3M, T-365M, T-385M, Q-3115AM/MS225S/D5SV2S-135ST2S-135MV2M-135MT2M-135
P-330, 5P-330325S8SV2S-098ST2S-098MV2M-098MT2M-098
P-330, 5P-330250D4SV2S-024ST2S-024MV2M-024MT2M-024
P-330A, 5P-330A, HP-125-L, 103Q-3L, 100Q-3L, T100-4, HP-100L, HP-115L, HP-165L, T140-4, HP-200L, T-4140L,133T-4L, Q-4240L, 101T-4L, 217Q-4L, 163Q-5L325S/D8SV2S-098ST2S-098MV2M-098MT2M-098
P-364225S5SV2S-135ST2S-135MV2M-135MT2M-135
P-364250D4SV2S-024ST2S-024MV2M-024MT2M-024
HP100M, HP115AM, HP165M, HP115AM, HP165M, 101T-4M, HP200M, T4140M, Q-4240M, T100-3,163Q4M, T140-3, 103Q-3M, 110Q-3M, 133T-4M, 217Q4M250S/D4SV2S-024ST2S-024MV2M-024MT2M-024
HP-100L, HP-165L, 101T-4L, 133T-4L, 163Q-4L, 217Q-4L, T100-4325S/D8SV2S-098ST2S-098MV2M-098MT2M-098
HP-160H, HP-225H, HP-250H, HP-360H, HP-375H, HP-600H, 184T-7H, 308T-7H, 543Q-7H, HP-300H, 133T-4H, T140-2300S89SV2S-2489ST2S-2489MV2M-2489MT2M-2489
HP-160H, HP-225H, HP-250H, HP-360H, HP-375H, HP-600H, 184T-7H, 308T-7H, 543Q-7H, HP-300H, 133T-4H, T140-2300D89SV2S-1389ST2S-1389MV2M-1389MT2M-1380
HP160M, HP225M, HP250M, HP300M, 133T4M, HP360M, HP375M, HP600M, 184T-7M, T140-3, 308T-7M, 543Q-7M, Q-7600M, T-7340M300S/D98SV2S-3198ST2S-3198MV2M-3198MT2M-3198
HP-160L, HP-225L, HP-250L, HP-300L, 133T4L, HP-360L, HP-375L, HP-600L, 184T-7L, T140-4, 308T-7L, 543Q-7L, Q-7600L, 7340L400S/D12SV2S-3112ST2S-3112MV2M-3112MT2M-3112
T4140M, Q4240M400S/D4SV2S-024ST2S-024MV2M-024MT2M-024
T4140L, T4240L325S/D8SV2S-098ST2S-098MV2M-098MT2M-098
P-610250S7SV2S-207ST2S-207MV2M-207MT2M-207
P-610225D5SV2S-135ST2S-135MV2M-135MT2M-135
P-610-B325S8SV2S-098ST2S-098MV2M-098MT2M-098
P-610-B225D5SV2S-135ST2S-135MV2M-135MT2M-135
P-630400S12SV2S-02B12ST2S-02B12MV2M-02B12MT2M-02B12
P-630250D4SV2S-024ST2S-024MV2M-024MT2M-024
P-640375S17SV2S-0117ST2S-0117MV2M-0117MT2M-0117
P-640300D9SV2S-099ST2S-099MV2M-099MT2M-099
P-640-A, P-540-A400S12SV2S-3112ST2S-3112MV2M-3112MT2M-3112
P-640-A, P-540-A300D98SV2S-3198ST2S-3198MV2M-3198MT2M-3198
P-650400S/D20SV2S-04Not Available20MV2M-04Not Available20
QT-630400S/D12SV2S-07B12ST2S-07B12MV2M-07B12MT2M-07B12
3P-450400S12SV2S-2612ST2S-2612MV2M-2612MT2M-2612
5P-450400S/D12SV2S-2712ST2S-2712MV2M-2712MT2M-2712
535, 333, 33R, 1824 Duplex250S/D4SV1S-024ST1S-024MV1M-024MT1M-024
1024, 1324, 7024 Duplex350S/D98SV1S-0998ST1S-0998MV1M-0998MT1M-0998
WBA Duplex350S9SV1S-279ST1S-279MV1M-279MT1M-279
WBA Duplex350D10SV1S-3010ST1S-3010MV1M-3010MT1M-3010
WBF Duplex400S/D10SV1S-3010ST1S-3010MV1M-3010MT1M-3010
1150, 2050, 2150, 2150-A, WBO, 6050-B, 7036-P Duplex400S/D10SV1S-2410ST1S-2410MV1M-2410MT1M-2410
7036, 6050, 5830 Duplex400S/D12SV1S-0212SV1S-0212MV1M-0212MT1M-0212
1036DA, 5850DA Duplex400S/D12SV1S-0512ST1S-0512MV1M-0512MT1M-0512
WBC, WBD, WBL, 1570, 2070, 2170, 2170A, 2180, 2180A400S/D12SV1S-1112ST1S-1112MV1M-1112MT1M-1112
7 1/2 x 10 Duplex400S/D12SV1S-2012ST1S-2012MV1M-2012MT1M-2012
